Financial & Logistic Battery Solution


In recent years, due to rapid development of lithium battery, remaining battery capacity on portable products has been evaluated by voltage measurements, however, their relationship varies according to discharge rate, temperature and battery’s aging degree. In this way, error rate can reach 50%. Because of growing market demand for longer use time, more precise solutions are required during design. Using smart battery fuel gauge IC to measure battery’s charge or discharge capacity is ableto precisely evaluate battery level.



Main feature of financial equipment battery:

  • Application areas: POS Terminal, Industrial PDA, Portable Printer, Handheld Scanner,

    Consumer Device and Currency Counter etc.

  • Li-ion polymer cells and import branded Li-ion cells solutions

  • Standard type, High voltage type and High Rate Type

  • Chemistry systems: LiCoO2

  • Single-cell and Multi-cells battery pack in series and parallel

  • High performance, long service life and high safety characteristics

  • Integrated intelligent PCBA

  • Customized plastic case configuration

  • Environmental friendly


PCM: a protection circuit designed mainly for rechargeable smart battery pack. Because of chemical characteristics of lithium battery, protection functions like smart battery level calculate, over charge, over discharge, short circuit, over current, etc, should be provided to avoid fire and explosion.

Protection IC: constantly monitors cells’ over charge, over discharge, short circuit, and over current to ensure cell’s safe, stable and efficient work.

Over current protection (PTC): mainly target for secondary protection function. PTC can recover fuse and has dual functions of over current protection and auto recovery. PTC can avoid battery from over heat discharge and occurrence of unsafe high current.

MOSFET: play the role of switch during circuit protection to guarantee load voltage can neither rise nor drop.



POS Terminal Battery

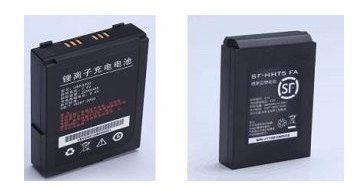

Item No.: 645255-2S

Cell model: KPL645255-2000mAh

Battery pack: 2S1P (Built in plastic Case)

Normal voltage: 7.4V

Normal capacity: 2000mAh

Standard discharge: 0.2C (continuously)

Maximum discharge: 1C (continuously)

Charging temperature range: 0~45℃

Discharge temperature range: -20~60℃

Dimensions: 14.5 x 57.0 x 61.4mm

Internal impedance: ≤210mΩ

PCM solution: IC- S8252AAH + MOS- 8205A*2 +NTC-10KΩ

Over-charge protection voltage: 4.25±0.020V/Cell

Over-discharge protection voltage: 3.00±0.05V

Over current protection: 7~12A



Portable Printer Battery Pack

Cell model: KPL645255-2200mAh

Battery pack: 2S1P (Built in plastic Case)

Normal voltage: 7.4V

Normal capacity: 2200mAh

Standard discharge: 0.2C (continuously)

Maximum discharge: 2C (continuously)

Charging temperature range: 0~45℃

Discharge temperature range: -20~60℃

Dimensions: 14.5 x 57.0 x 61.4mm

Internal impedance: ≤210mΩ

PCM solution: IC- S8252AAH + MOS- 8205A*2 +NTC-10KΩ

Over-charge protection voltage: 4.25±0.020V/Cell

Over-discharge protection voltage: 3.00±0.05V

Over current protection: 7~12A

SOC solution: BQ28Z610
