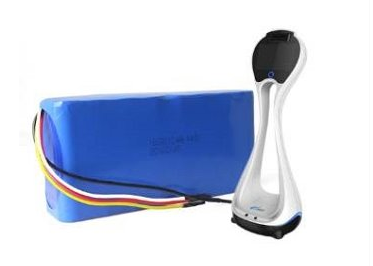

Battery for Service Robotics

Product Description

As the world's leading supplier, we can provide a variety of Battery for Service Robotics to meet the needs of many applications. Lithium-ion batteries have the advantages of relatively light weight, large storage capacity, and no memory effect, so they are widely used. The batteries are widely used in industrial robots, cleaning robots, service robots, educational robots, entertainment robots and so on. In addition, our range of batteries have a variety of voltages, capacities and layouts, you can choose whatever you need.

Advantages

The Battery for Service Robotics does not contain harmful elements such as mercury, lead, cadmium, etc., and it is a true green battery. Besides, it has a long cycle life. In the case of deep discharge, the cycle number of the lithium-ion battery can reach more than 1,000 times, and at low depth of discharge, the cycle number can reach tens of thousands. If you are interested in our Battery for Service Robotics Battery, please feel free to send us an inquiry. We guarantee that you can be completely satisfied with our products.

Parameters

Battery specification: 18650-4S4P-10400mAh-14.8V

Battery cell: Lithium-ion 18650-2500mAh-3.7V

Applicable occasion: indoor

Working temperature/humidity: -10～60℃；40～60%RH

Storage temperature/humidity: -10～60℃；50～70%RH

Encapsulation mode: Plastic case + basic protection

Nominal voltage: 14.8V

Nominal capacity: 10400mAh

Dimension: 150*71*38mm

Internal resistance: ≤250mΩ

Weight: 780g

Charge current: 2A

Max start-up current:3A start-up time for 20ms

Continuous discharge current: 2A

Protective current: 8~15A

Charge voltage: 16.8V, Cut-off voltage: 11.0V

Charge temperature: 0～45℃

Discharge temperature: -20～60℃

Storage temperature: -20～60℃
